HY-133J-A 全自動穿頭機（鏈牙拉開式）
- 型號
- HY-133J-A
- 平均產量
- 2600PCS/60CM/H
- 功率
- 0.8KW
- 電壓
- 220V
- 頻率
- 50/60HZ
- 凈重
- 200KG
- 毛重
- 250KG
- 裝箱尺寸
- 95*95*160CM
產品特點
- 本機是將金屬?gòu)椈深^全自動套入開尾或閉尾拉鏈的一款新型自動化設備。
- 采用精密的物料自動排列輸送與停止監控裝置，既保持物料順暢又減少物料過度磨損。
- 特有的鏈齒保護裝置，防止鏈齒的移位。
- 獨特的PLC自編自控動作程序，既穩定又可以滿足未來更多的要求。
|
型號 |
平均產量 |
功率 |
電壓 |
頻率 |
凈重 |
毛重 |
裝箱尺寸 |
|
Item No. |
Average Output |
Power |
Voltage |
Frequency |
N.W. |
G.W. |
Dimension |
|
HY-133J-A |
2600PCS/60CM/H |
0.8KW |
220V |
50/60HZ |
200KG |
250KG |
95*95*160CM |
Feature:

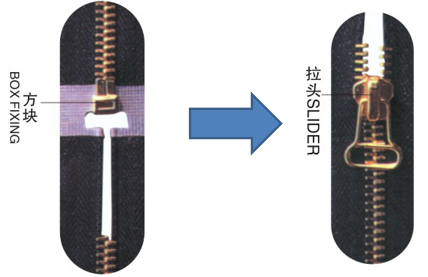

- The machine is used for metal/nylon/plastic zipper slider insert for open-end (or close-end).
- PLC control, touching screen operate, easy to operate. The machine stops and warns automatic for fault solve.
- Mould can be adjusted for different puller lock height, more convenient.
- Open-end/close-end (except single side mounting), fancy/common pullers can be produced in one machine.
Lead Time:
around 15-20 days after order is confirmed, it depends on customer requirement
After-sales service:
engineers available to service machinery overseas, customer will be responsible for all of charge.
